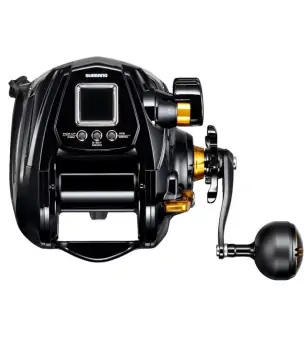

2022 Beast Master 9000 for demanding electric and deep-water fishing, with a brushless GIGA-MAX motor, reinforced gearing and HAGANE Body. The table lists 900 m of PE 8 and a 25 kg maximum drag. Thermo Adjust Drag reduces motor speed when the drag slips to limit heat; listed features include electronic drag sound, S A-RB bearings, an LCD and Rakuraku controlled-tension or constant-speed modes. Colour Tankenmaru functions require a compatible onboard base unit, and fish-school depth requires ACCU-FISH. A lithium battery is not included; the catalogue recommends BT Master 11 Ah, subject to the power instructions.
| MODEL | Product name | gear ratio | Maximum drag force (Kg) | Weight (g) | Spool diameter (mm)/width (mm) | Thread winding amount Fluoro (No. -m) | Yarn amount PE (No.-m) | Maximum winding length (cm/1 rotation of handle) | Handle length (mm) | Number of bearings BB/roller | Practical winding endurance (Kg) | Maximum hoisting speed (m/min) | Practical hoisting speed (m/min) 1kg load | Practical hoisting speed (m/min) 3kg load | Practical hoisting speed (m/min) 5kg load | Electric cable total length (m) |
| 22 BEAST MASTER 9000 | 9000 | 3.1 | 25 | 1485 | 90/62 | 12-700, 14-550, 16-500 | 6-1100, 8-900, 10-650, 12-550 | 88 | 75 | 14 | 20 | 170 | 150 | 119 | 96 | 2.5 |
