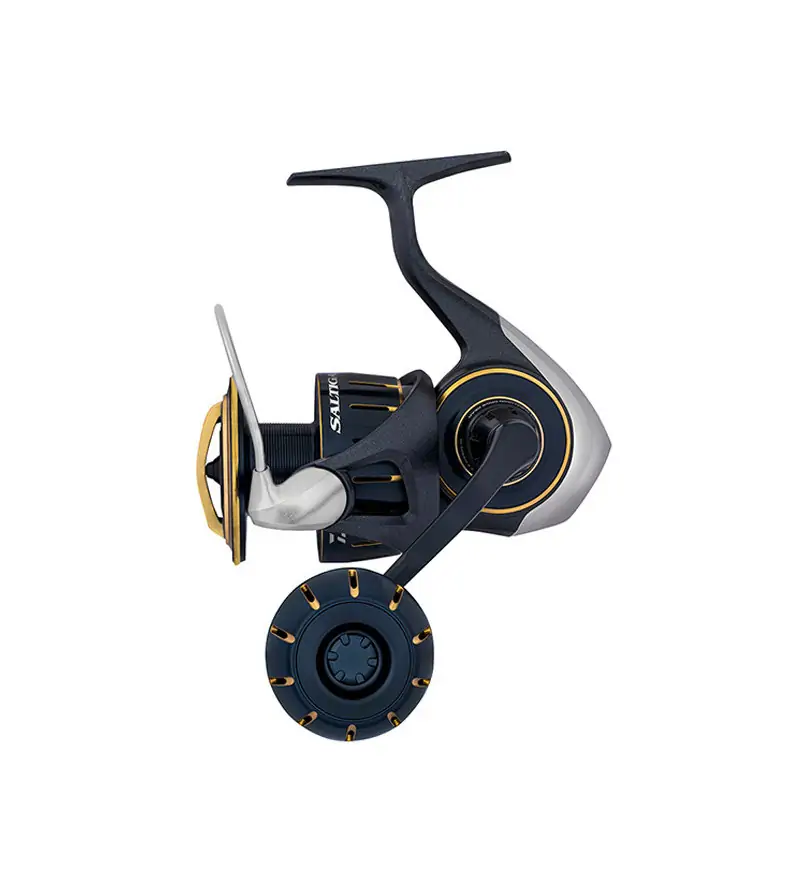

The 23 Saltiga 4000/5000/6000 family combines an aluminium MQ monocoque body with a large G1 duralumin Tough Digigear drive. AIRDRIVE DESIGN uses an aluminium rotor, a refined bail and a supported shaft system for responsive rotation. MAGSEALED protection, Cross Wrap line lay, an aluminium ABS Long Cast spool and carbon ATD drag complete the equipment. The bail is manually operated. Handle lengths are 65 mm for 4000/5000 and 70 mm for 6000; round knobs are 39 mm for 4000 and 42 mm for 5000/6000. Select the exact model from the table.
| MODEL | Model | (cm/handle 1 rotation) | gear ratio | Weight (g) | Maximum drag force (kg) | Standard winding amount PE (No. -m) | Bearing (ball/roller) | Handle length (mm) |
| 23 SALTIGA 4000-H | 4000-H | 90 | 5.7 | 345 | 12 | 2-300 / 2.5-260 | 12 1 | 65 |
| 23 SALTIGA 4000-XH | 4000-XH | 98 | 6.2 | 345 | 12 | 2-300 / 2.5-260 | 12 1 | 65 |
| 23 SALTIGA 5000-H | 5000-H | 96 | 5.7 | 365 | 15 | 2.5-300 / 3-210 | 12 1 | 65 |
| 23 SALTIGA 5000-XH | 5000-XH | 104 | 6.2 | 365 | 15 | 2.5-300 / 3-210 | 12 1 | 65 |
| 23 SALTIGA 6000-H | 6000-H | 101 | 5.7 | 400 | 15 | 3-300 / 4-220 | 12 1 | 70 |
| 23 SALTIGA 6000-XH | 6000-XH | 110 | 6.2 | 400 | 15 | 3-300 / 4-220 | 12 1 | 70 |
